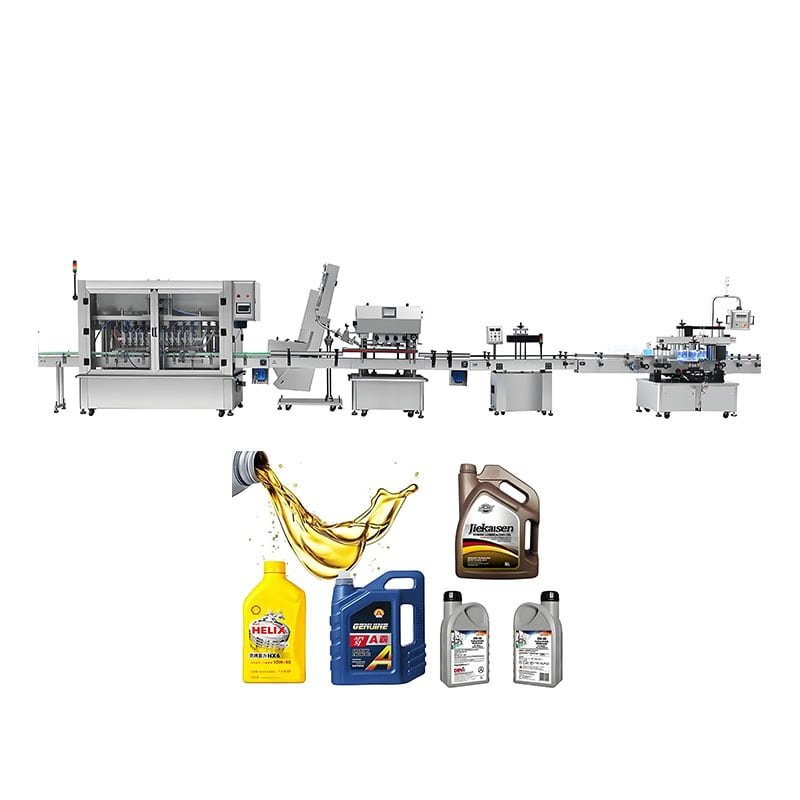

Lubricant Filling Line
The machines can be customized, tell us your requirement and product information, we will provide you with the best solutions, welcome to contact us!
| No. of filling head | 2,4,6,8,10,12 |
|---|---|
| Filling volume | 1~5L |
| Filling precision | ±0.2% |
| Power | 50Hz/60Hz,3N~380V |
| Power consumption | 0.75KW~7.5KW |
| Air pressure | 0.5~0.8Mpa |
| Working pressure | 0.6~0.7MPa |
The fully automatic oil filling machine is under the operation and control of high-speed PLC, through the human-machine dialogue interface, to achieve linear stepless speed regulation and conveying, can arbitrarily adjust the filling capacity, and can be equipped with pneumatic capping or capping devices. Form a multi-station one-machine multi-function production line. The filling machine assembly line integrates machinery, electricity, and gas, with a unique design, complete functions, stable performance, excellent quality, and beautiful appearance.
Technical features
- The unique multi-filling head and back suction system designed for no dripping ensure that the production site and the packaged finished products are not contaminated by liquid materials.
- The use of Taiwan Yonghong PLC touch control screen greatly facilitates the adjustment of parameters and the testing of various functions.
- High-precision flow meter, comprehensive filling error ≤10g.
- The bottle height can be adjusted according to needs, and the adjustment is simple, fast and accurate.
- The filling nozzle flushing form has umbrella type or direct flushing type, which is suitable for filling of different liquid properties. The umbrella type is suitable for liquid materials that are easy to foam.
- The stepless regulator can adjust the speed of the stainless steel conveyor belt and flexibly coordinate the synchronization of multiple processes.
- The pneumatic capping device has a wide range of applicability. The pneumatic capping is designed for different specifications and shapes. The capping head can be replaced to adapt to the capping of various lids.
- The main pneumatic and electrical components are imported accessories to ensure stable system performance and excellent quality.
- The equipment comes with a pump to pressurize the liquid, which greatly improves the production capacity.
- It has pause and forced stop functions to facilitate emergency handling in any situation

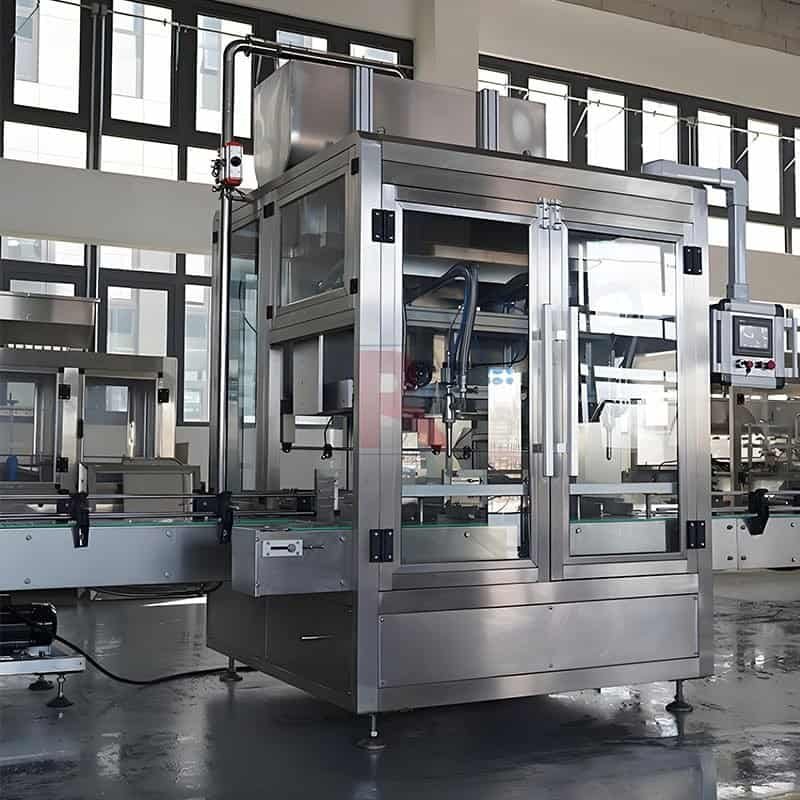

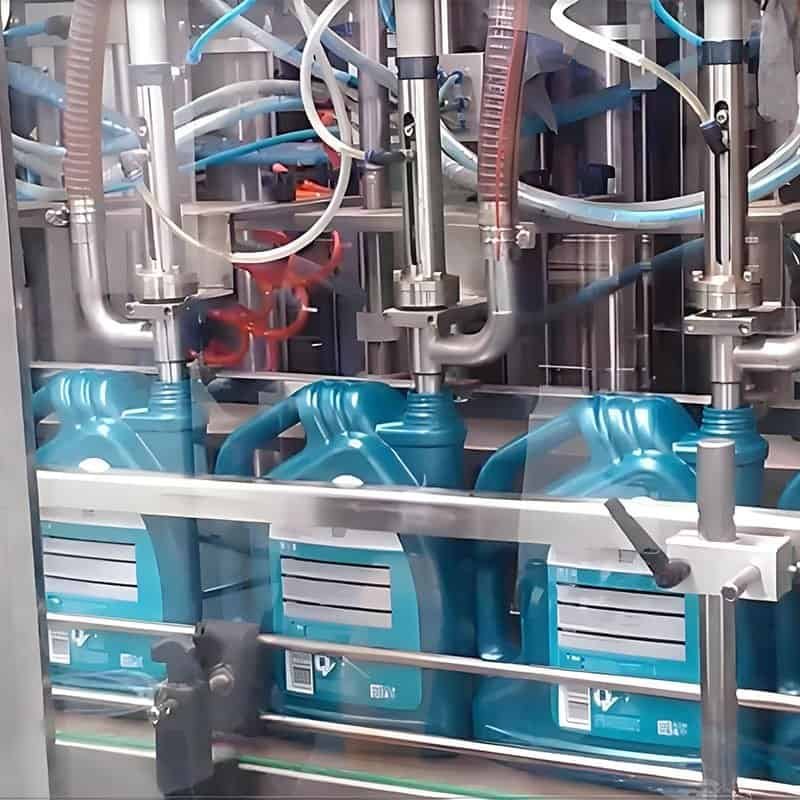

Machine Details
Samples
It can fill a variety of liquids: automotive urea, windshield washer fluid, antifreeze, liquid fertilizer, large and small bottles of mineral water, disinfectant, and more.
