It is efficient and intelligent, with automatic tare function. After placing the material barrel, it automatically tares when pressing the filling button, which solves the problem of insufficient filling due to the error of the empty barrel. The automatic tare function is more convenient to operate. The manual tare of other companies is troublesome to operate, and employees are often busy pressing the tare button, resulting in inaccurate quantitative measurement.

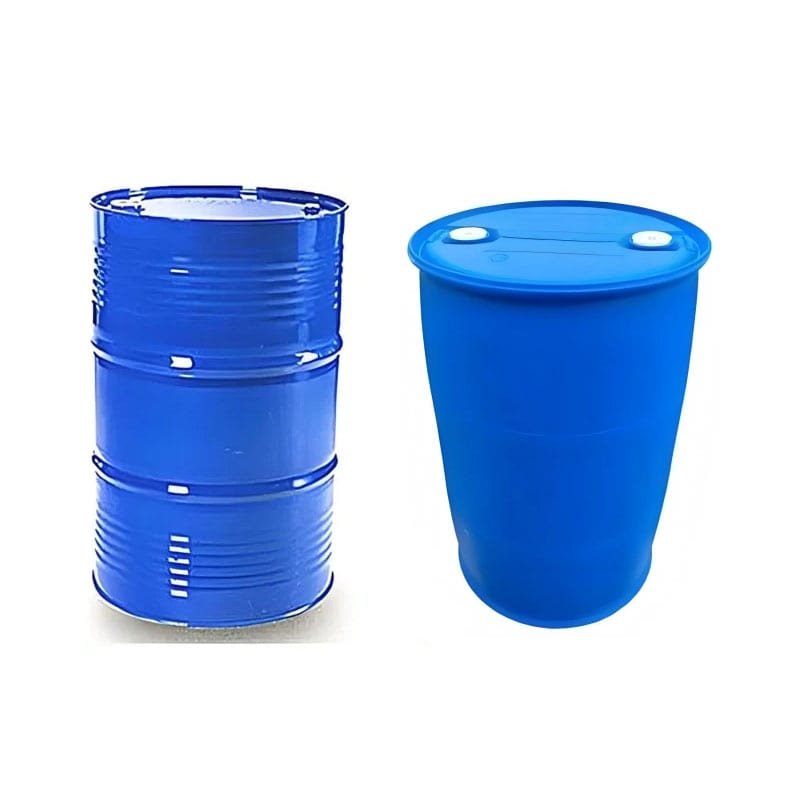

It is especially suitable to fill large barrels, no matter it is metal barrel, plastic barrel, or large opening barrel, or small opening barrel.

Key Features:
Separate start/stop button for easier operation;
The filling head is equipped with a 150mm upgrade mechanism, allowing it to accommodate various drum sizes;
The automatic brake on the scale prevents the drum mouth from contacting the filling gun, affecting filling accuracy;
The dual-slope design is ideal for smaller spaces, low production capacity, or locations where manual drum handling is required without a motorized forklift.

Applicable Materials:
The short-tube design, with its full-flow flow rate, is suitable for filling liquids that are not prone to foaming or explosive gases, such as bulking agents, coatings, paints, resins, curing agents, lubricants, inks, thinners, detergents, cooking oils, and chemical liquids.
The long-tube design, with its full-flow flow rate, is suitable for filling liquids that are prone to foaming or explosive gases, such as cleaning agents, tetrahydrofuran, cyclopentane, n-pentane, methyl acetate, and explosive solvents.

Operational Procedure:

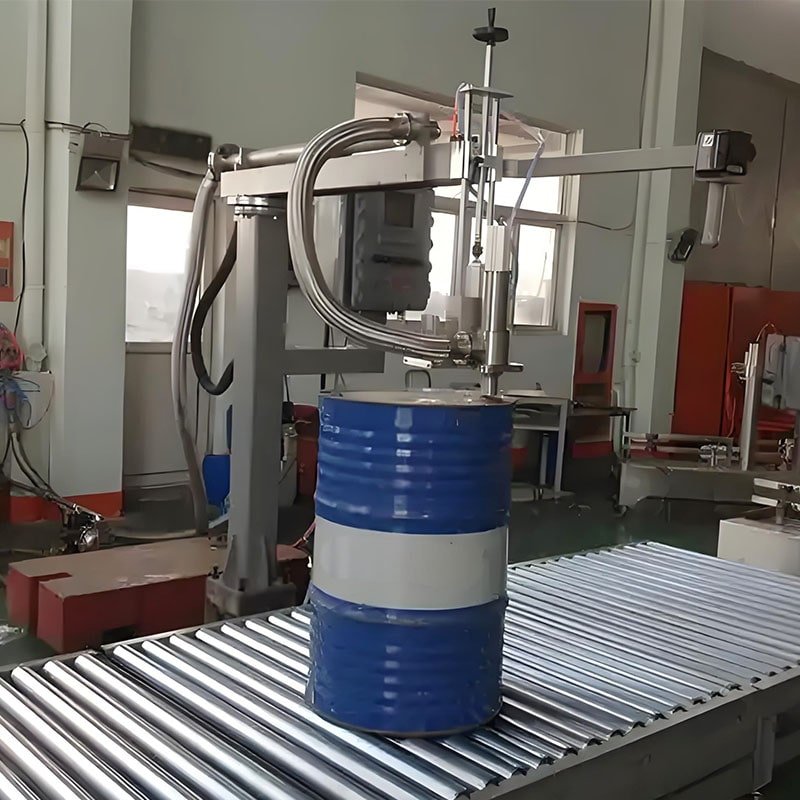

Power on the machine – Manually place the barrel onto the scale – Press the [Start] button – The filling head automatically inserts into the barrel opening – Automatic tare removal – The filling head and ball valve assembly automatically open to begin filling – Three-stage filling: large, small, and micro – When the target value is reached – The filling gun automatically closes and rises outside the barrel – Manually remove the barrel and lock the lid.

Functional Configuration:
Chinese Display: 7-inch full-color LCD screen with Chinese-language user guidance throughout the entire process.
Intelligent and Efficient: Filling is prohibited if a barrel is not present on the scale. Differential pressure-operated zero-time barrel collision protection, automatic tare removal, automatic detection and filling start, intelligent fool-proofing, and fault detection all enable single-person operation of both filling and capping operations.
Professional Filling Gun: German-engineered, with a five-layer seal, ensures leak-free filling.
Easy Operation: Adjustable barrel positioning slots ensure fast and accurate positioning. The system automatically detects barrel positioning and automatically starts filling. The filling gun is height-adjustable by 150mm to accommodate barrels of varying sizes.
Function Switching: Net/gross weight, automatic/manual mode.
Accurate and Fast: Equipped with large and small ball valves and a dual-stage filling gun with four settings: large, medium, small, and micro, this eliminates the impact of varying material flow rates on filling accuracy, resulting in industry-leading filling accuracy and speed.
