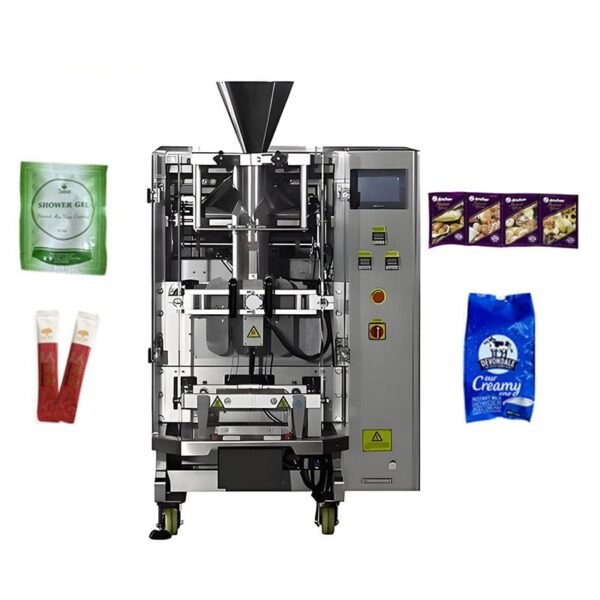

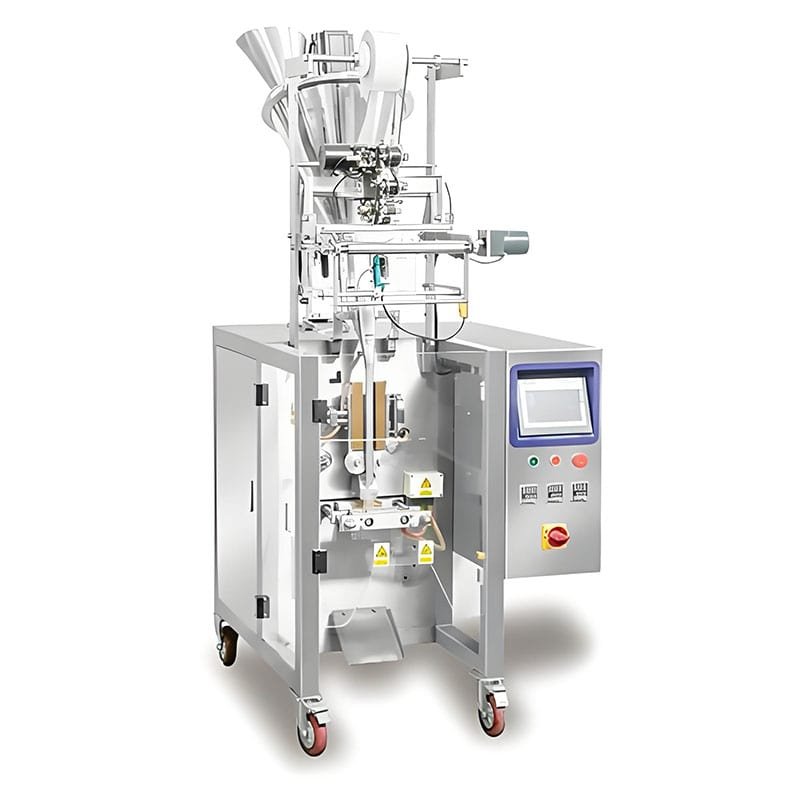

Automatic Sachet Filling Machine(Bag forming)
The machines can be customized, tell us your requirement and product information, we will provide you with the best solutions, welcome to contact us!
This sachet packing filling machine is the bag forming type, it can make various different types of bags and then fill it, the filling material can be liquid, paste, cream, granules, particles, etc. It adopts the roll film type, based on the making bag size, it has various different machine model.
| Model | BP-320 | BP-420 |
|---|---|---|
| Bag making size | L60~250mm W50~150mm | L60~300mm W60~200mm |
| Packing speed | 40~100bags/min | 35~80bags/min |
| Power supply | 220V, 50/60Hz, 3KW | |
| Compressed air | 6~8kg/m³ | |
| Air consumption | 0.3m³/min | |
| Weight | 300kg | 350kg |
| Dimensions | 1400*1000*1200mm | 1600*1100*1500mm |
| Model | BP-520 | BP-620 |
|---|---|---|
| Bag making size | L80~350mm W80~250mm | L100~400mm W100~300mm |
| Packing speed | 30~80bags/min | 30~70bags/min |
| Power supply | 220V, 50/60Hz, 4KW | |
| Compressed air | 6~8kg/m³ | |
| Air consumption | 0.3m³/min | |
| Weight | 350kg | 400kg |
| Dimensions | 1650*1200*1600mm | 1800*1300*1750mm |
| Model | BP-820 | BP-1250 |
|---|---|---|
| Bag making size | L120~500mm W120~400mm | L150~800mm W150~600mm |
| Packing speed | 20~60bags/min | 5~30bags/min |
| Power supply | 220V, 50/60Hz, 4KW | 220V, 50/60Hz, 5KW |
| Compressed air | 6-8kg/m³ | |
| Air consumption | 0.3m³/min | |
| Weight | 450kg | 500kg |
| Dimensions | 2000*1600*2000mm | 2200*2000*2400mm |

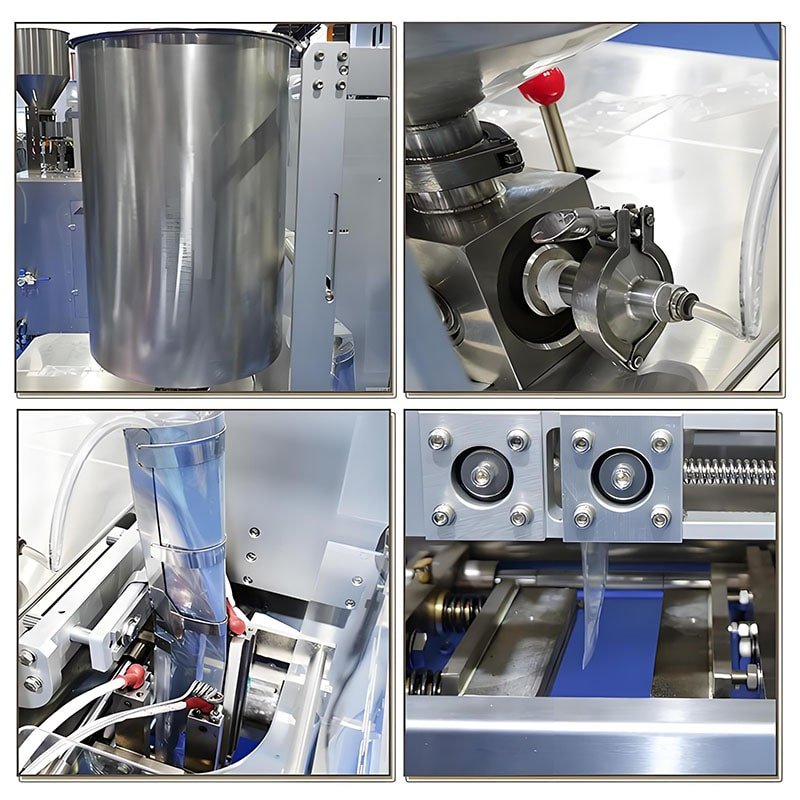

Machine Details
Filling Packing Samples
Bag forming type: it can make various different kinds of bags in the market.
The machine used the roll film to form bags, and suitable for various different film material.
The machine can connect with other machines or mechanisms to form a full production unit.
