Automatic Paste Cream Filling Machine

The machines can be customized, tell us your requirement and product information, we will provide you with the best solutions, welcome to contact us!

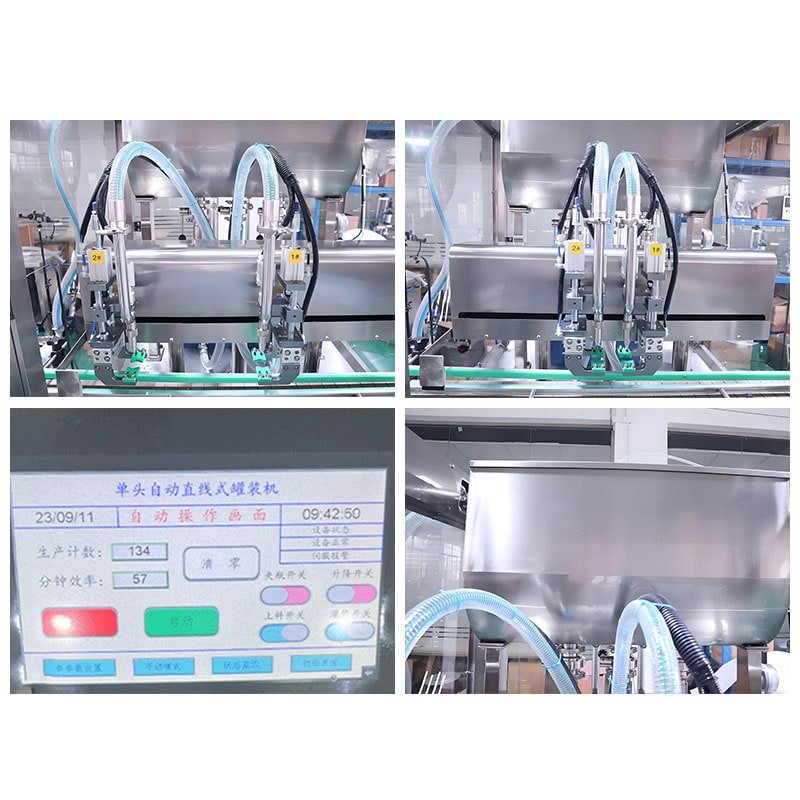

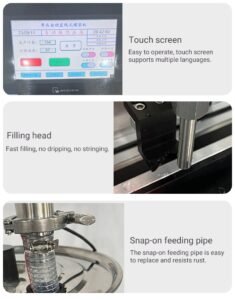

The machine adopts piston or plunger quantitative system, with filling accuracy up to ±0.2%. It is equipped with electronic weighing or servo drive technology, supports flexible adjustment from 5 ml to 50 kg, and has anti-drip and anti-drawing design; the filling head has a built-in one-way valve, which closes quickly after filling to avoid material residue, optimizes the shape of the outlet and the surface treatment process, and effectively solves the problem of high-viscosity paste drawing. Equipped with photoelectric sensors, it can realize functions such as no bottle, no filling, and automatic positioning of containers.

Typical application areas:
Daily chemical industry: filling of facial cleansers, hand creams, shampoos, and facial mask pastes.
Medical field: quantitative packaging of ointments, ointments, and medical gels.
Food processing: packaging of high-viscosity foods such as jams, honey, sauces, and bird’s nest pastes.

Machine specificationsSingle stationDouble station
Applicable specifications10-500g10-500g
Output50g:20-40 BPM50g:40-80 BPM
Power supply/Power220V/3kw220V/5kw
Compressed air consumption0.4-0.6Mpa  25m³/h0.4-0.6Mpa  45m³/h
