Automatic Granule Particles Filling Machine
The machines can be customized, tell us your requirement and product information, we will provide you with the best solutions, welcome to contact us!
The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying, it has the advantages of high accurate weighing, high efficiency without breaking materials.
The machine is suitable for pack anomalous solid and the granule material, such as puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookies, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep frozen food, etc.

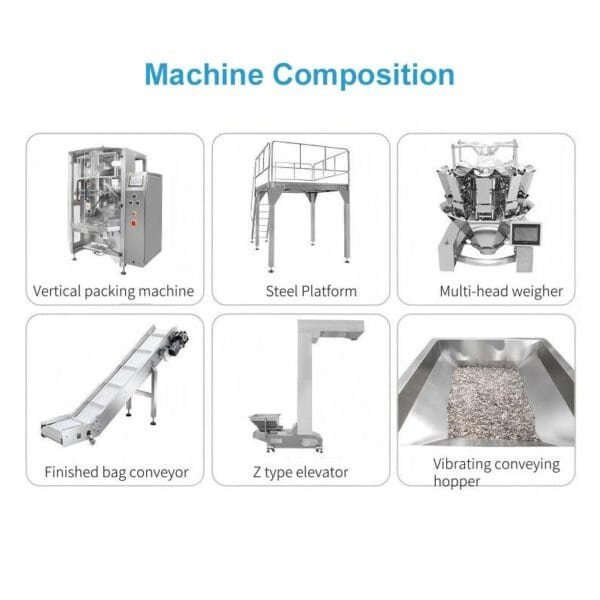

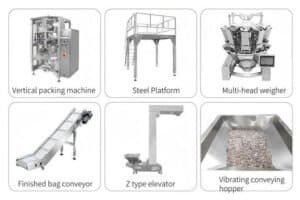

Machine composition
Packing samples
Technical parameters
| Model | BP-VP420 | BP-VP520 | BP-VP620 | BP-VP730 | BP-VP900 |
|---|---|---|---|---|---|
| Max. film width | 420mm | 520mm | 620mm | 730mm | 900mm |
| Max. bag width | 200mm | 250mm | 300mm | 350mm | 400mm |
| Max. packing speed | 70bags/min | 70bags/min | 50bags/min | 45bags/min | 30bags/min |
| Air consumption | 0.3m³/min | 0.3m³/min | 0.4m³/min | 0.5m³/min | 0.6m³/min |
| Power supply | 3KW 220V 50/60Hz | 3.5KW 220V 50/60Hz | |||
| Packing material | Various heat-sealable composite films | ||||
| Bag making type | Bag making form: back-sealed bag, gusseted bag, hot-edge bag, punched hole bag, and bag-in-bag | ||||
| Optional function | Exhaust, nitrogen pumping, vacuum pumping, gusseting, patting, punching, anti-static, etc. | ||||
